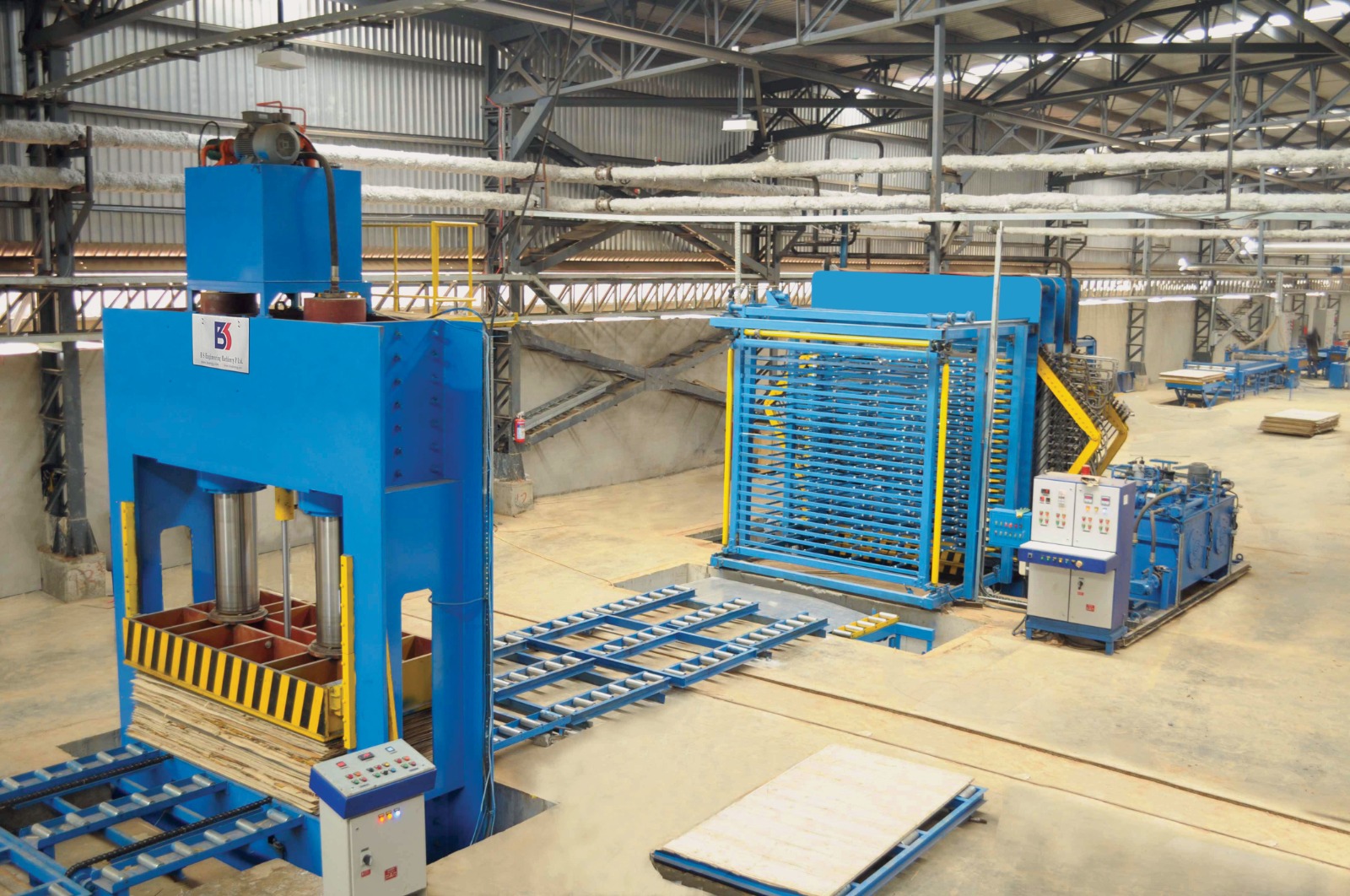

The Cold Press is in down Frame. There are feeding and discharge conveyor. The top Pressing frame up movement is by separate double-acting pair of piston cylinder.
| Description | Specifications |
| Capacity | 500 / 450 Tons |
| Working Pressure | 10 Kgs / cm² |
| Max. Pressure | 14 Kgs /cm² |
| Platen Size | 2500 x 1300 mm |
| Press Opening | 1600 mm |
| No. of Pressing Ram | 2 mm |
| Ram Diameter | 360 mm |
| Loading Size | 2500 mm |
| Motor Power Required | 17 .5 HP / 13.0 KW |
